PELCO® Silicon Dioxide Support Films for TEM

Ultra-Flat - 40nm, 18nm and 8nm membrane thickness

These PELCO® Membranes of Silicon Dioxide (SiO2) offer superior flatness. Using advanced MEMS manufacturing technologies combined with novel stress-reducing techniques, we have been able to provide Silicon Dioxide Support Films with unsurpassed flatness and a membrane thickness of 40nm, 18nm and 8nm. It is truly the next generation Silicon Dioxide membranes. The flatness of our silicon dioxide membranes is at least 10x better than competitive products. The SiO2 membranes are completely amorphous.

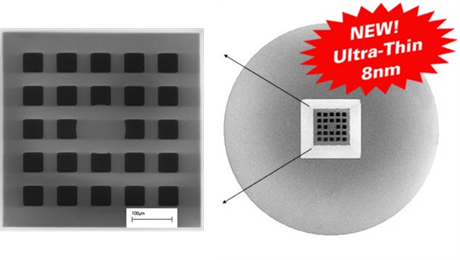

The Silicon Dioxide (SiO2) Support Films are manufactured using the PELCO® 200nm Silicon Nitride (Si3N4) Support Films with the 0.5 x 0.5mm window on a perfectly round 3mm Si frame as a platform. The silicon dioxide support films consist of pure and amorphous thermal SiO2 membrane. The 0.5 x 0.5mm membrane is patterned into 24 ea. apertures with a size varying between 50 x 50µm to 70 x 70µm and etched back to the thermally-deposited amporhous Silicon Dioxide leaving a structure-free SiO2 thin membrane of 40nm, 18nm or 8nm, suspended by a 200nm optically transparent (Si3N4) support mesh. The bar size between the SiO2 apertures is 25-35µm and the boundary width is 25-55µm. The design of the mesh and the ratio of mesh suspension and Silicon Dioxide Film has been optimized to enable flat Silicon Dioxide Support Films with a size of 50 x 50µm to 70 x 70µm. The result is a Silicon Dioxide membrane with a truly superior flatness, ideal for TEM imaging. In the unique design of this PELCO® product, the compression in the SiO2 film is balanced by the stress in the Si3N4 grid structure. The mesh size of the Silicon Dioxide Support Films is comparable to the area size found on most 300 and 400 mesh TEM grids and is considered to be a practical size for many applications. There are 24 fields of SiO2 support films on each frame. The boundary of 200nm Si3N4 membrane leaves ample area for experiments on Si3N4.

SI02,8NM, 0.5 X 0.5MM, PKG10

SiO2 Support Film, 8nm, 70 x 70µm apertures (24) on 0.5 x 0.5mm Window, Ø3mm

SI02,18NM, 0.5 X 0.5MM, PKG10

SiO2 Support Film, 18nm, 60 x 60µm apertures (24) on 0.5 x 0.5mm Window, Ø3mm

SI02,40NM, 0.5 X 0.5MM, PKG10

SiO2 Support Film, 40nm, 50 x 50µm apertures (24) on 0.5 x 0.5mm Window, Ø3mm

Ultra-Flat 6" SiO2 Wafer

Ultra-Flat Thermal SiO2 Substrates

The Ultra-Flat SiO2 substrates consist of a 200nm thermally grown amorphous SiO2 film on an ultra-flat silicon wafer. SiO2 is one of the most characterized materials and is widely used in semiconductor manufacturing, thin film research and as substrate for growing cells. It can be directly used as substrate for AFM and SEM imaging. The ultra-flat thermal silicon dioxide substrates are available in 6" wafer and conveniently diced 5x5mm, 5x7mm and 10x10mm chips. The 6" wafer is shipped in a 6" wafer carrier, the diced pieces are shipped in a Gel-Pak box. The special clean dicing process involves coating the wafer with photo resist before dicing and removing it after dicing which produces debris-free SiO2 substratres. All products are packed in class 10 clean room conditions.


200nm Thermal Oxide on 10x10mm diced Ultra-Flat Wafer, <100>, in Gel-Pak box


200nm Thermal Oxide on ø6" Ultra-Flat Wafer, Type <100>, in 6" wafer carrier


200nm Thermal Oxide on 5x5mm diced Ultra-Flat Wafer, Type <100>, in Gel-Pak box


200nm Thermal Oxide on 5x7mm diced Ultra-Flat Wafer, Type <100>, in Gel-Pak box
