The Gel-Box, Gel-Tray and Gel-Slide product series are designed to protect and store sensitive devices and specimens during transport, processing, inspection and assembly. Devices can be loaded and removed easily using tweezers or by hand from the unique highly cross-linked Gel polymer. The degree of holding force of the Gel is depending on the tackiness of the Gel material, which is called Retention Level. The Gel material is strong in both shear and vertical directions, but weak in the peel direction, which allows parts to be easily unloaded from the Gel surface. Gel is an extremely durable and versatile material that maintains its properties between -40°C to 220°C. Minimum shelf life is 2 years.

Applications for semiconductor devices, sensors, micromechanical devices, pptoelectronics, hard drive heads, bio-medical devices, specimen storage.

Retention levels available are X0, X4 and X8. The optimum tack level for individual parts depends on material, size, weight and surface roughness. Unfortunately there is no exact formula to calculate the retention level but general guidelines are:

• Low retention level - X0 - for highly polished surfaces
• Medium retention level - X4 - for pre-polished and/or etched surfaces
• High retention level - X8 - for rough surfaces like ceramics

Gel-Pak® has devised an effective box system with offers a versatile selection of box materials optimized for the diverse range of applications:

• C - Conductive black polycarbonate (optimum protection against static discharges)
• AS - Clear Anti-Static plastic (optimum visibility)
• CAS - Clear Anti-Static top with conductive plastic bottom (optimum for ESD safe protection and visibility)
• T - Clear Styrene Box  for non ESD sensitive parts (most economical solution)

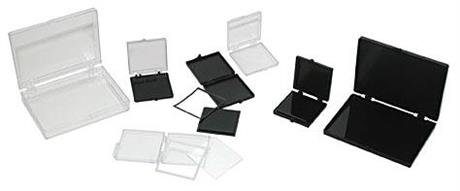

The Gel-Pak® products are available as:

• Gel-Box with the material in the base of the box
• Gel-Tray with a removable 2" x 2" carrier tray
• Gel-Slide with a 2" x 2" glass slide

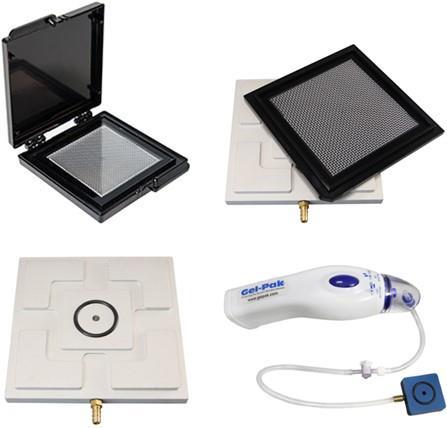

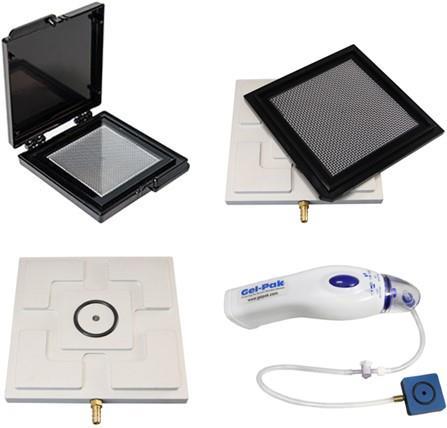

Vacuum-release storage and shipping boxes from Gel-Pak®

Gel-Pak® Vacuum Release (VR) Series

Vacuum-release storage and shipping boxes from Gel-Pak® are available in 2" and 4" sizes. Each box contains a Gel-Pak® tray with X4 gel to firmly hold substrates, electronic devices, and other types of samples. Application of a vacuum to the tray releases the specimens from the gel, allowing easy removal without prying or application of force. They are also often used in automated pick-and-place applications.

Vacuum Release Tray 2": 2 W x 2 H x 0.25" D (50.80 x 50.80 x 6.35mm)
Usable Area: 1.35 W x 1.35" H (34.29 x 34.29mm)
Tack Level: X4
Internal Clearance (Mils): 112
Box Materials: Conductive Tray, Conductive Lid
Mesh Size: 16

Vacuum Release Tray 4": 4 W x 4 H x 0.46" D (101.60 x 101.60 x 11.68mm)
Usable Area: 3 W x 3" H (76.2 x 76.2mm)
Tack Level: X4
Internal Clearance (Mils): 169
Box Materials: Conductive Tray, Conductive Lid
Mesh Size: 16
